| In-Ceiling/In-Wall
Speakers |
| Studio™ L Series |

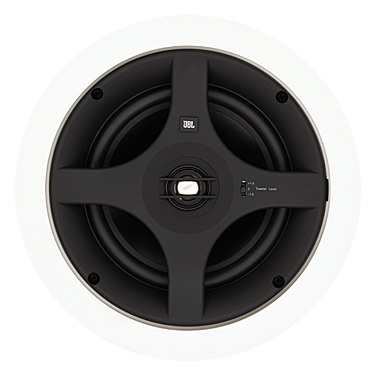

L226C
2-Way 6-1/2" In-Ceiling
Loudspeaker |
| |
The L226C a 2-way in-ceiling speaker for
use in a wide variety of applications,
from stereo and whole-house music systems
to complete home theaters. The L226C features
an aluminum woofer and titanium-laminate
tweeter to deliver accurate performance
with dramatically reduced distortion for
incredibly realistic sound. The L226C
also incorporates JBL's proprietary waveguide
to ensure smooth distribution of sound
throughout the listening area. The tweeter
level control allow for optimum high-frequency
performance in any room and installation
location. The white grilles and frames
are paintable and allow the speakers to
blend into any decor.
|
|
| |
|
|
|
 |
 |
| OTHER VIEWS
|
|
|
|
|
|
|
|
| |
|
| |
| General | |
| Frequency Response | 30Hz – 20kHz (±6dB)
|
| Recommended Amplifier Power Range | 10 - 125 watts |
| Sensitivity (2.83V @ 1m) | 89dB
|
| Nominal Impedance | 8 ohms
|
| Crossover Frequency | 2,500Hz; 24dB/octave
|
| Low-Frequency Driver | 6-1/2" (165mm) Aluminum Cone |
| High-Frequency Driver | 1" (25mm) Titanium-Laminate |
Dimensions
(H x W x D) | Diameter: 9-3/16"
(233mm)
|
| Mounting Depth | 4-1/8" (104mm) |
| Cutout Diameter | 7-7/8" (200mm) |
| Weight | 3.5 lb (1.6kg) |
| Optional Accessories | Rough-In Frame: RIF6CS |
|
| |
|
| |
|
